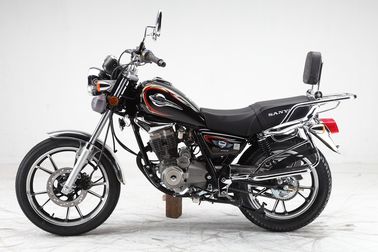

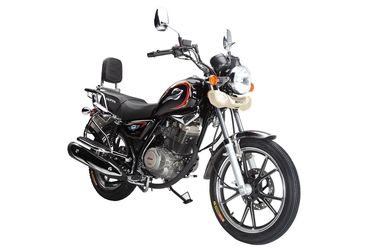

GN Model Dual Sport Street Bike 125 CC 150CC Engine Crystal Headlight Music Type

China GN Model Dual Sport Street Bike 125 CC 150CC Engine Crystal Headlight Music Type supplier
GN Model Dual Sport Street Bike 125 CC 150CC Engine Crystal Headlight Music Type supplier GN Model Dual Sport Street Bike 125 CC 150CC Engine Crystal Headlight Music Type supplier

Large Image :  GN Model Dual Sport Street Bike 125 CC 150CC Engine Crystal Headlight Music Type

Product Details:

Place of Origin: CHINA, GUANGDONG
Brand Name: SANYA
Model Number: SY150-26C

Payment & Shipping Terms:

Minimum Order Quantity: 20 unit
Price: 400-600usd
Delivery Time: 30-45 days
Supply Ability: 20,000 unit per month
Contact Now
Detailed Product Description
Dimension(L*W*H)(mm): 2010 * 780 * 1130 Engine Type: 150
Rated Loading Weight(kg): 150 Wheelbase(mm): 1280
Braking Operative Mode(F/R): Hand Brake/Foot Brake Fuel Consumption(L/100Km): 2.3



GN Model 125 CC 150CC Engine Large Capacity Water Droplet Fuel Tank Music Motorcycle Headlight


SY150-16


Dimension(L*W*H)(mm): 2010 * 780 * 1130
Wheelbase(mm):1280
Min ground clearance(mm): 160
Mass Weight(kg): 136
Rated Loading Weight(kg): 150
Max Rated Speed(km/h): 90
Fuel Consumption(L/100Km): 2.3
Braking Mode(F/R): Disc/Drum
Braking Operative Mode(F/R): Hand Brake/Foot Brake





150 CC Engine Parameter
NO. Item Parameter in English Name
1 Model single cylinder,4-stroke,air cool, diagonal type
2 Max net power and the corresponding rotating speed 7.9KW,8500±425r/min
3 Calibration power and the corresponding speed 7.0KW,8000±400r/min
4 Max torque and the corresponding speed 8.5.0N·m,7500±350r/min
5 Minimum fuel consumption rate 367g/KW·h
6 Minimum no-load stable speed (idle) 1500±100r/min
7 Compression ratio 9.2:1
8 Cylinder diameter × piston stroke 56.5.0mm×49.5mm
9 Cylinder working volume 124.1ml
10 Spark advance angle 15°±2°~35°±2°
11 The turning of output shaft Anticlockwise
12 Ignition method C·D·I
13 Lubrication method Pressure and splash lubrication at the same time
14 Valve clearance (20 ± 10 ° C) Intake valve:0.03~0.05mm
Exhaust valve:0.03~0.05mm
15 Idle emission CO≤2.0%
16 HC≤250ppm
17 Clutch model Multi-disk wet clutch
18 Transmission model Fifth gear
19 Starting method Kick + Electric start
20 Carburetor CPZ26
21 Magnetic motor inner-rotor flywheel magneto
22 Spark plug D8RC
23 Oil bump Rotor type
24 Starting motor 12 V DC
25 Gasoline RQ above 90# unleaded gasoline
26 Lubrication oil type SAE 15W/40 SE
27 Lubricating oil consumption rate 8 g/kw·h
28 Filling amount of lubrication 1.0L
29 Dimensions (Length/Weight/Height) 361mm×328mm×429mm
30 Net weight 31.5kg



150CC Engine Parameter
NO. Item Parameter in English Name
1 Model single cylinder,4-stroke,air cool, diagonal type
2 Max net power and the corresponding rotating speed 8.5KW,8500±425r/min
3 Calibration power and the corresponding speed 7.5KW,8000±400r/min
4 Max torque and the corresponding speed 10.0N·m,7000±350r/min
5 Minimum fuel consumption rate 354g/KW·h
6 Minimum no-load stable speed (idle) 1500±100r/min
7 Compression ratio 9.0:1
8 Cylinder diameter × piston stroke 62.0mm×49.5mm
9 Cylinder working volume 149ml
10 Spark advance angle 15°±2°~35°±2°
11 The turning of output shaft Anticlockwise
12 Ignition method C·D·I
13 Lubrication method Pressure and splash lubrication at the same time
14 Valve clearance (20 ± 10 ° C) Intake valve:0.03~0.05mm
Exhaust valve:0.03~0.05mm
15 Idle emission CO≤2.0%
16 HC≤250ppm
17 Clutch model Multi-disk wet clutch
18 Transmission model Fifth gear
19 Starting method Kick + Electric start
20 Carburetor PZ27
21 Magnetic motor inner-rotor flywheel magneto
22 Spark plug D8RC
23 Oil bump Rotor type
24 Starting motor 12 V DC
25 Gasoline RQ above 90# unleaded gasoline
26 Lubrication oil type SAE 15W/40 SE
27 Lubricating oil consumption rate 8 g/kw·h
28 Filling amount of lubrication 1.0L
29 Dimensions (Length/Weight/Height) 350mm×329mm×430mm
30 Net weight 32kg
