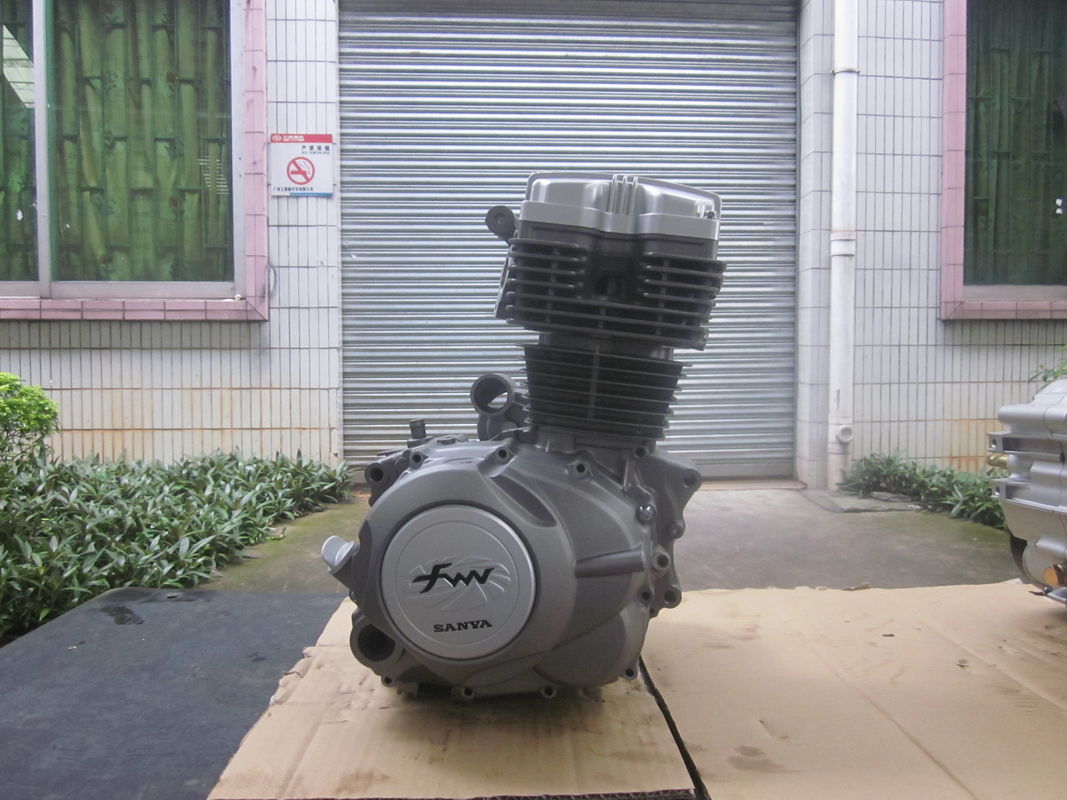

175CC Motorcycle Replacement Engines , Motorcycle Engine With Transmission
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Silver | Fuel: | Gasoline |
|---|---|---|---|
| Stroke: | 4 Strokes | Gear: | 5 Gears |
| Displacement: | 175CC | Starting Method: | Kick + Electric Start |
175CC Engine for Motorcycle or as spareparts four Stroke, Air-Cool, Single Cylinder,light clutch
| 175CC Engine Parameter | ||
| NO. | ITEM | Parameter |
| 1 | Model | single cylinder,4-stroke,air cool, diagonal type |
| 2 | Max net power and the corresponding rotating speed | 9.1KW,8500±425r/min |
| 3 | Calibration power and the corresponding speed | 8.8KW,8000±400r/min |
| 4 | Max torque and the corresponding speed | 12.3N·m,6000±350r/min |
| 5 | Minimum fuel consumption rate | 354g/KW·h |
| 6 | Minimum no-load stable speed (idle) | 1500±100r/min |
| 7 | Compression ratio | 9.0:1 |
| 8 | Cylinder diameter × piston stroke | 62.0mm×58mm |
| 9 | Cylinder working volume | 175ml |
| 10 | Spark advance angle | 15°±2°~35°±2° |
| 11 | The turning of output shaft | Anticlockwise |
| 12 | Ignition method | C·D·I |
| 13 | Lubrication method | Pressure and splash lubrication at the same time |
| 14 | Valve clearance (20 ± 10 ° C) | Intake valve:0.03～0.05mm |
| Exhaust valve:0.03～0.05mm | ||
| 15 | Idle emission | CO≤2.0% |
| 16 | HC≤250ppm | |
| 17 | Clutch model | Multi-disk wet clutch |
| 18 | Transmission model | Fifth gear |
| 19 | Starting method | Kick + Electric start |
| 20 | Carburetor | PZ30 |
| 21 | Magnetic motor | inner-rotor flywheel magneto |
| 22 | Spark plug | D8RC |
| 23 | Oil bump | Rotor type |
| 24 | Starting motor | 12 V DC |
| 25 | Gasoline | RQ above 90# unleaded gasoline |
| 26 | Lubrication oil type | SAE 15W/40 SE |
| 27 | Lubricating oil consumption rate | 8 g/kw·h |
| 28 | Filling amount of lubrication | 1.0L |
| 29 | Dimensions (Length/Weight/Height) | 350mm×329mm×430mm |
| 30 | Net weight | 32kg |
Description:
- Each engine part will be check and test before assemble the engine; good quality makes customer satisfied.
- Each engine will be tested before shipment, 100% make sure it can use and running, long performance life.
- Saving energy but strong power.
- Start easily, low noise, smooth operation, make people enjoy the riding.
- Each engine with high quality engine oil.
- OEM welcome, ever engine design and produce by ourselves.
Quality is the soul of commercial product, the excellent inspection system is the absolutely necessarily procedure which ensures good quality to the product. SANYA owns the advanced inspection system, each part is produced carefully, each procedure is controlled strictly, and the quality of finished products is 100% according to international level.
We Sanya believes only constant innovation can make the company successful in more competitive motorcycle industry, so our company invests huge fund to recruit R&D employees, and builds up a first-class R&D team in domestic, learns and adopts actively advance R&D technology from foreign countries.
We export many countries; nearly 65 countries have our SANYA motorcycles. We won many honors from our domestic and foreign country. We received many good feedbacks from our domestic and foreign customers. Warmly welcome to our company.
