4 Gears 110cc 4 Stroke Motorcycle Engine Single Cylinder Kick Electric Start

China 4 Gears 110cc 4 Stroke Motorcycle Engine Single Cylinder Kick Electric Start supplier
4 Gears 110cc 4 Stroke Motorcycle Engine Single Cylinder Kick Electric Start supplier 4 Gears 110cc 4 Stroke Motorcycle Engine Single Cylinder Kick Electric Start supplier

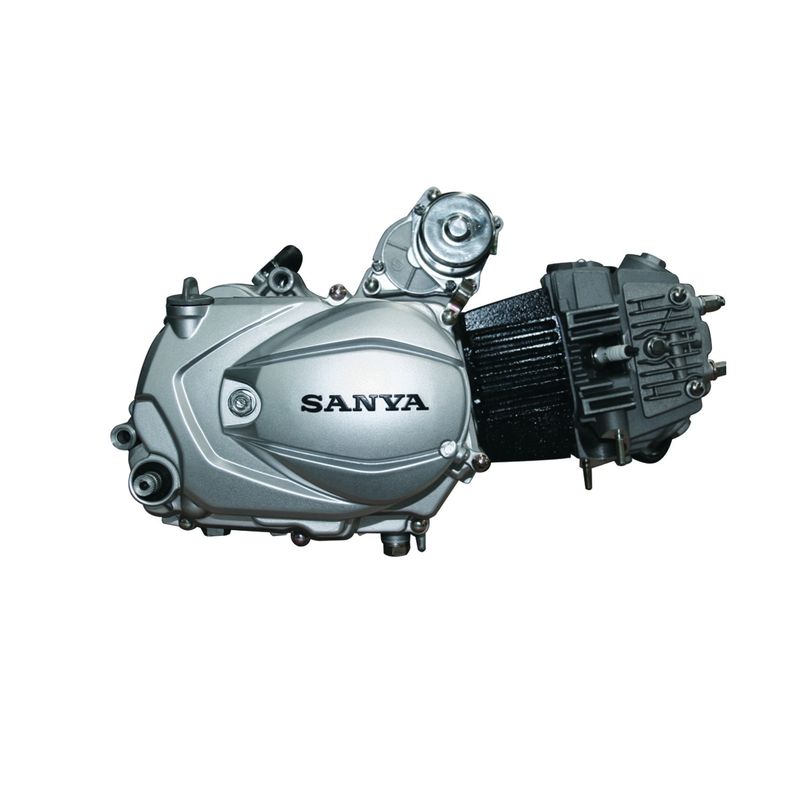

Large Image :  4 Gears 110cc 4 Stroke Motorcycle Engine Single Cylinder Kick Electric Start

Product Details:

Place of Origin: China
Brand Name: Sanya
Model Number: N110 Zuan-Chi Engine

Payment & Shipping Terms:

Minimum Order Quantity: One container
Price: Negotiation
Packaging Details: Carton
Delivery Time: 35 days after receive deposit
Supply Ability: 30000 per month
Contact Now
Detailed Product Description
Color: Grey/Black Displacement: 107CC
Fuel: Gasoline Gear: 4 Gears
Stroke: 4 Strokes Starting Method: Kick + Electric Start

N110 Engine Parameter
NO. Item Parameter
1 Model single cylinder,4-stroke,air cool, diagonal type
2 Max net power and the corresponding rotating speed 5.0KW,8000±400r/min
3 Calibration power and the corresponding speed 4.7KW,7500±375r/min
4 Max torque and the corresponding speed 7.0N·m,6000±300r/min
5 Minimum fuel consumption rate 367g/KW·h
6 Minimum no-load stable speed (idle) 1400±100r/min
7 Compression ratio 9.1:1
8 Cylinder diameter × piston stroke 52.4mm×49.5mm
9 Cylinder working volume 107ml
10 Spark advance angle 13°±2°~28°±2°
11 The turning of output shaft Anticlockwise
12 Ignition method C·D·I
13 Lubrication method Pressure and splash lubrication at the same time
14 Valve clearance (20 ± 10 ° C) Intake valve:0.03~0.05mm
Exhaust valve:0.03~0.05mm
15 Idle emission CO≤2.0%
16 HC≤250ppm
17 Clutch model Multi-disk wet clutch
18 Transmission model Four gear
19 Starting method Kick + Electric start
20 Carburetor PZ19
21 Magnetic motor inner-rotor flywheel magneto
22 Spark plug A7RC
23 Oil bump Rotor type
24 Starting motor 12 V DC
25 Gasoline RQ above 90# unleaded gasoline
26 Lubrication oil type SAE 15W/40 SE
27 Lubricating oil consumption rate 8 g/kw·h
28 Filling amount of lubrication 0.9L
29 Dimensions (Length/Weight/Height) 430mm×310mm×260mm
30 Net weight 23kg

Description:

  1. Each engine part will be check and test before assemble the engine; good quality makes customer satisfied.
  2. Each engine will be tested before shipment, 100% make sure it can use and running, long performance life.
  3. Saving energy but strong power.
  4. Start easily, low noise, smooth operation, make people enjoy the riding.
  5. Each engine with high quality engine oil.
  6. Guaranty: 12 months or 6000km for the engine.
  7. OEM welcome, ever engine design and produce by ourselves.



We Sanya believes only constant innovation can make the company successful in more competitive motorcycle industry, so our company invests huge fund to recruit R&D employees, and builds up a first-class R&D team in domestic, learns and adopts actively advance R&D technology from foreign countries.

Quality is the soul of commercial product, the excellent inspection system is the absolutely necessarily procedure which ensures good quality to the product. SANYA owns the advanced inspection system, each part is produced carefully, each procedure is controlled strictly, and the quality of finished products is 100% according to international level.

We export many countries; nearly 65 countries have our SANYA motorcycles. We won many honors from our domestic and foreign country. We received many good feedbacks from our domestic and foreign customers. Warmly welcome to our company.
