SH125CC / 150CC Motorcycle Replacement Engines Four StrokeSingle Cylinder

Certification
Good quality Dirt Street Motorcycle for sales
Good quality Dirt Street Motorcycle for sales
I have cooperated with this company for over 3 years, I like their products which is popular with our customers and trust their service.

—— David

I receive your products, they are all good. Keep in touch!

—— William

I'm Online Chat Now

SH125CC / 150CC Motorcycle Replacement Engines Four StrokeSingle Cylinder

China SH125CC / 150CC Motorcycle Replacement Engines Four StrokeSingle Cylinder supplier
SH125CC / 150CC Motorcycle Replacement Engines Four StrokeSingle Cylinder supplier SH125CC / 150CC Motorcycle Replacement Engines Four StrokeSingle Cylinder supplier

Large Image :  SH125CC / 150CC Motorcycle Replacement Engines Four StrokeSingle Cylinder

Product Details:

Place of Origin: China
Brand Name: Sanya
Model Number: SH125/150

Payment & Shipping Terms:

Minimum Order Quantity: One container
Price: Negotiation
Packaging Details: Carton
Delivery Time: 35 days after receive deposit
Supply Ability: 30000 per month
Contact Now
Detailed Product Description
Color: Grey Displacement: 125CC/150CC
Fuel: Gasoline Stroke: Four Strokes
Gear: Five Gears Starting Method: Kick + Electric Start

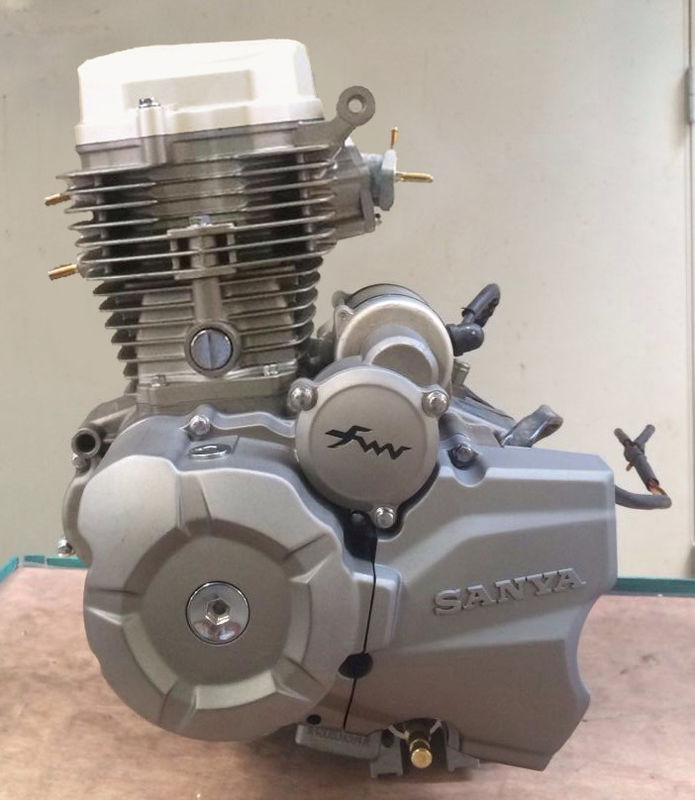

SH125CC/150CC Motorcycle Engine Four Stroke, Air-Cool, Single Cylinder,Light Clutch







125 CC Engine Parameter
NO. Item Parameter in English Name
1 Model single cylinder,4-stroke,air cool, diagonal type
2 Max net power and the corresponding rotating speed 8.0KW,8500±425r/min
3 Calibration power and the corresponding speed 7.0KW,8000±400r/min
4 Max torque and the corresponding speed 8.5.0N·m,7500±350r/min
5 Minimum fuel consumption rate 367g/KW·h
6 Minimum no-load stable speed (idle) 1400±100r/min
7 Compression ratio 9.2:1
8 Cylinder diameter × piston stroke 56.5.0mm×49.5mm
9 Cylinder working volume 124.1ml
10 Spark advance angle 15°±2°~35°±2°
11 The turning of output shaft Anticlockwise
12 Ignition method C·D·I
13 Lubrication method Pressure and splash lubrication at the same time
14 Valve clearance (20 ± 10 ° C) Intake valve:0.03~0.05mm
Exhaust valve:0.03~0.05mm
15 Idle emission CO≤2.0%
16 HC≤250ppm
17 Clutch model Multi-disk wet clutch
18 Transmission model Fifth gear
19 Starting method Kick + Electric start
20 Carburetor CPZ26
21 Magnetic motor inner-rotor flywheel magneto
22 Spark plug D8RC
23 Oil bump Rotor type
24 Starting motor 12 V DC
25 Gasoline RQ above 90# unleaded gasoline
26 Lubrication oil type SAE 15W/40 SE
27 Lubricating oil consumption rate 8 g/kw·h
28 Filling amount of lubrication 1.0L
29 Dimensions (Length/Weight/Height) 361mm×328mm×429mm
30 Net weight 31.5kg

150CC Engine Parameter
NO. Item Parameter in English Name
1 Model single cylinder,4-stroke,air cool, diagonal type
2 Max net power and the corresponding rotating speed 8.5KW,8500±425r/min
3 Calibration power and the corresponding speed 7.5KW,8000±400r/min
4 Max torque and the corresponding speed 10.0N·m,7000±350r/min
5 Minimum fuel consumption rate 354g/KW·h
6 Minimum no-load stable speed (idle) 1500±100r/min
7 Compression ratio 9.0:1
8 Cylinder diameter × piston stroke 62.0mm×49.5mm
9 Cylinder working volume 149ml
10 Spark advance angle 15°±2°~35°±2°
11 The turning of output shaft Anticlockwise
12 Ignition method C·D·I
13 Lubrication method Pressure and splash lubrication at the same time
14 Valve clearance (20 ± 10 ° C) Intake valve:0.03~0.05mm
Exhaust valve:0.03~0.05mm
15 Idle emission CO≤2.0%
16 HC≤250ppm
17 Clutch model Multi-disk wet clutch
18 Transmission model Fifth gear
19 Starting method Kick + Electric start
20 Carburetor PZ27
21 Magnetic motor inner-rotor flywheel magneto
22 Spark plug D8RC
23 Oil bump Rotor type
24 Starting motor 12 V DC
25 Gasoline RQ above 90# unleaded gasoline
26 Lubrication oil type SAE 15W/40 SE
27 Lubricating oil consumption rate 8 g/kw·h
28 Filling amount of lubrication 1.0L
29 Dimensions (Length/Weight/Height) 350mm×329mm×430mm
30 Net weight 32kg



Description:

  1. Each engine part will be check and test before assemble the engine; good quality makes customer satisfied.
  2. Each engine will be tested before shipment, 100% make sure it can use and running, long performance life.
  3. Saving energy but strong power.
  4. Start easily, low noise, smooth operation, make people enjoy the riding.
  5. Each engine with high quality engine oil.
  6. Guaranty: 12 months or 6000km for the engine.
  7. OEM welcome, ever engine design and produce by ourselves.

We Sanya believes only constant innovation can make the company successful in more competitive motorcycle industry, so our company invests huge fund to recruit R&D employees, and builds up a first-class R&D team in domestic, learns and adopts actively advance R&D technology from foreign countries.

Quality is the soul of commercial product, the excellent inspection system is the absolutely necessarily procedure which ensures good quality to the product. SANYA owns the advanced inspection system, each part is produced carefully, each procedure is controlled strictly, and the quality of finished products is 100% according to international level.

We export many countries; nearly 65 countries have our SANYA motorcycles. We won many honors from our domestic and foreign country. We received many good feedbacks from our domestic and foreign customers. Warmly welcome to our company.
